P034308-016-429

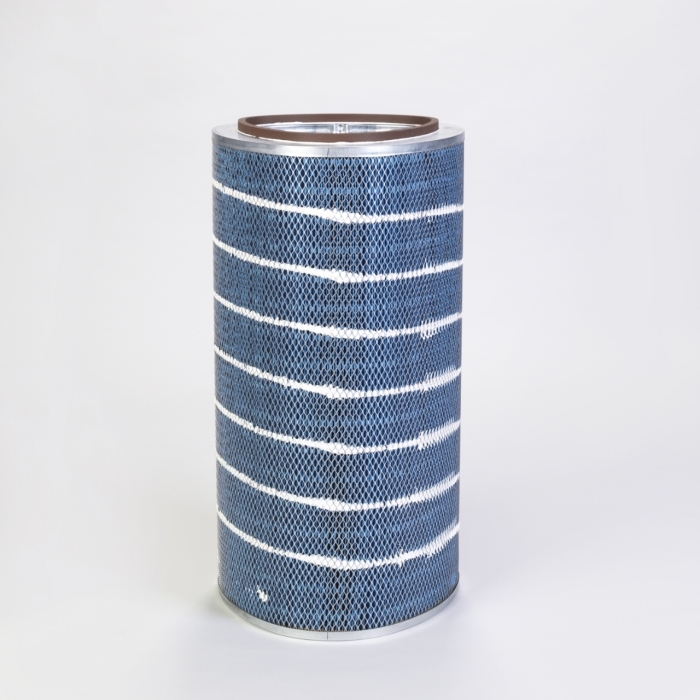

Thermo-Web Triagonal Cartridge Filter, (349 mm x 349 mm) outer diameter x 660 mm long (13.74-inch x 13.74-inch) outer diameter x 26.00-inches long), Open/Open End caps for Downflo Evolution and other brands of cartridge collectors. 51 mm (2.00-inch) Pleat Height

Diameter (mm)	349
Diameter II (mm)	349
Inner Diameter (mm)	237.4
Inner Diameter II (mm)	237.4
Length (mm)	660
Media	#REF!
Media Weight (g/m²)	114
Area (m²)	18.4
Unit Family	DFE
Bottom End Cap Design	Open
Earthed	No
Flame Retardant	No
Top End Cap Design	Open
Outer Liner	Yes
Gasket Position	Above Top End Cap
End Cap/Liner Material	Galvanized Steel
Pleath Height (mm)	51
Number of Pleats	284
Max. Temp (°C)	135
Volume (m³)	0.12103
Weight (kg)	7.257472
