P034305-016-436

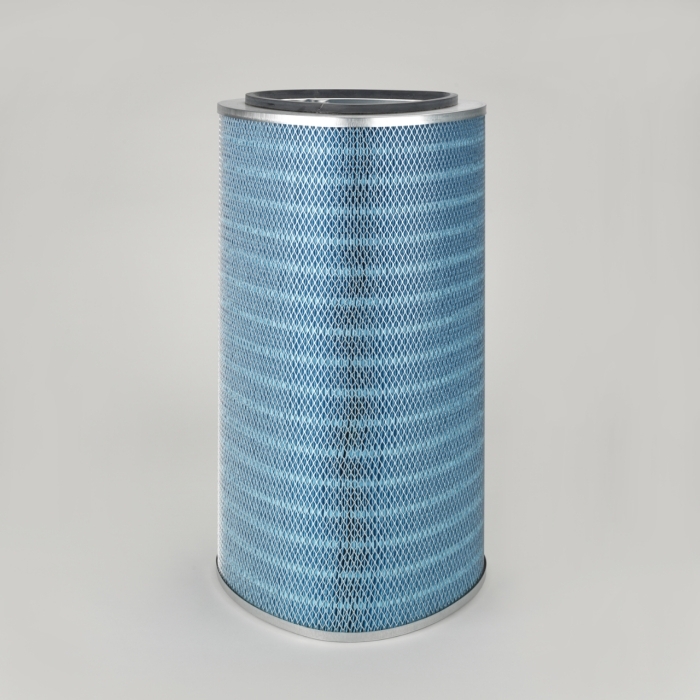

DFE ULTRA-WEB SS CARTRIDGE (349 MM X 349 MM) OD X 660 MM L (13.74" X 13.74") OD X 26" L)

Your price: €314.99
List price:  €346.15

Files

Filter Data Sheet

Details

Ultra-Web Triagonal Cartridge Filter, (349 mm x 349 mm) outer diameter x 660 mm long (13.74-inch x 13.74-inch) outer diameter x 26.00-inches long), Stainless Steel Construction, Open/Open End caps for Downflo Evolution and other brands of cartridge collectors. 51 mm (2.00-inch) Pleat Height

Attributes

Diameter (mm) 349
Diameter II (mm) 349
Inner Diameter (mm) 237.4
Inner Diameter II (mm) 237.4
Length (mm) 660
Media #REF!
Media Weight (g/m²) 114
Area (m²) 23.6
Unit Family DFE
Bottom End Cap Design Open
Earthed No
Flame Retardant No
Top End Cap Design Open
Outer Liner Yes
Gasket Position Above Top End Cap
End Cap/Liner Material Stainless Steel
Pleath Height (mm) 51
Number of Pleats 364
Max. Temp (°C) 82
Volume (m³) 0.12271
Weight (kg) 4.3544832
