P281755-016-002

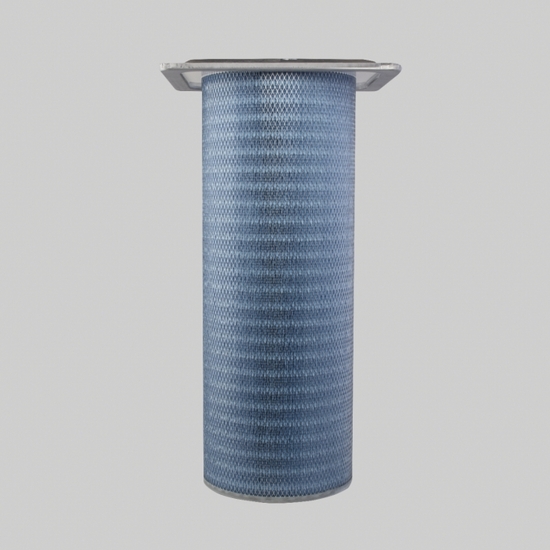

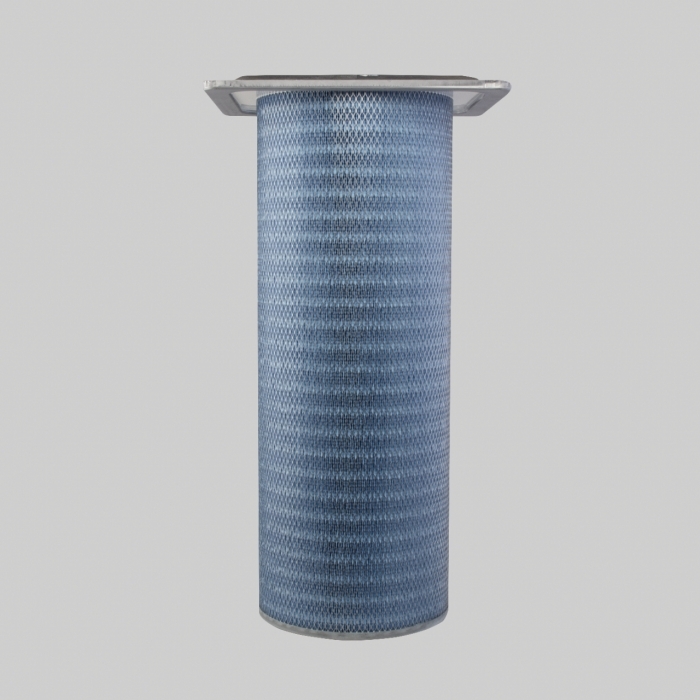

Ultra-Web Cartridge Filter, 373 mm outer diameter x 991 mm long (14.70-inch outer diameter x 39.00-inches long), Open/Closed Endcaps with 425 mm x 533 mm Rectangle Flange (16.75-inch x 21.00-inch Rectangle Flange) for Camfil Farr Gold Series and other brands of cartridge collectors.

Diameter (mm)	373
Inner Diameter (mm)	235
Length (mm)	991
Media	#REF!
Media Weight (g/m²)	114
Area (m²)	38.8
Unit Family	Farr Gold Series
Bottom End Cap Design	Closed
Earthed	No
Flame Retardant	No
Top End Cap Design	Open (Square)
Outer Liner	Yes
Gasket Position	Above Top End Cap
End Cap/Liner Material	Galvanized Steel
Pleath Height (mm)	60.5
Number of Pleats	340
Max. Temp (°C)	82
Volume (m³)	0.26115735136
Weight (kg)	15.422128
