P031236-016-340

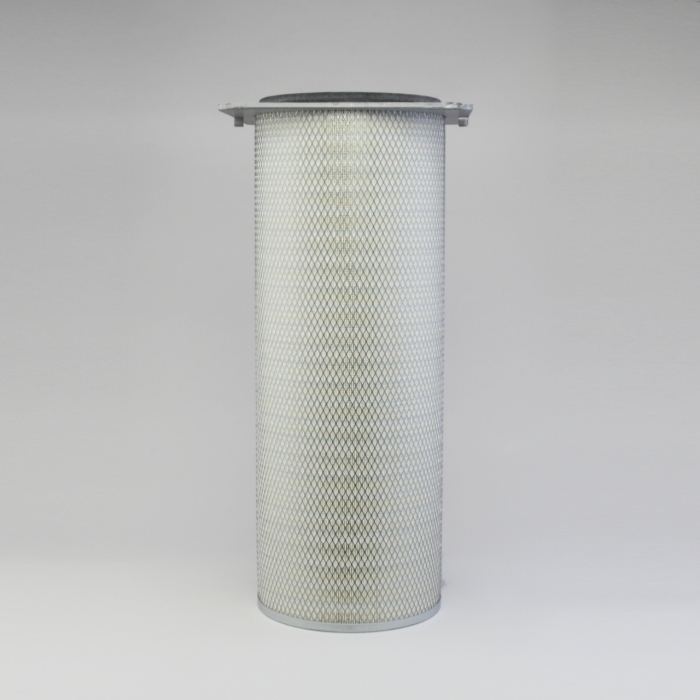

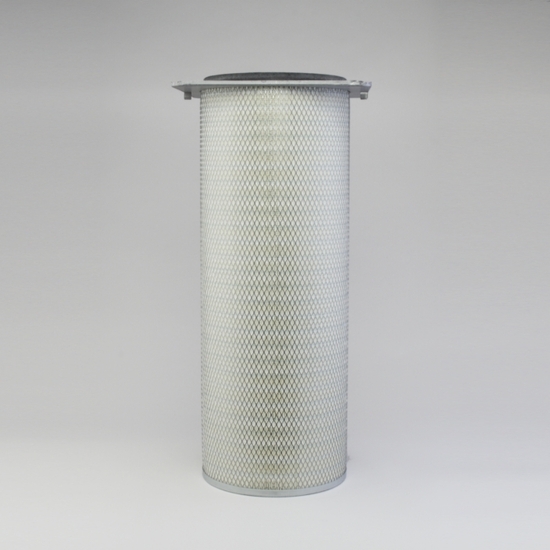

Endura-Tek Flame Retardant Cartridge Filter, 324 mm outer diameter x 864 mm long (12.74-inch outer diameter x 34.00-inches long), Open/Closed Endcaps with 361 mm x 406 mm Rectangle Flange (14.22-inch x 15.98-inch Rectangle Flange) for Camfil Farr Tenkay and other brands of cartridge collectors.

Diameter (mm)	324
Inner Diameter (mm)	213
Length (mm)	864
Media	Endura-Tek
Media Weight (g/m²)	114
Area (m²)	26.76
Unit Family	Farr-Tenkay
Bottom End Cap Design	Closed
Earthed	No
Flame Retardant	No
Top End Cap Design	Open (Square)
Outer Liner	Yes
Gasket Position	Above Top End Cap
End Cap/Liner Material	Galvanized Steel
Pleath Height (mm)	50.8
Number of Pleats	325
Max. Temp (°C)	82
Volume (m³)	0.14698684544
Weight (kg)	9.8202668
