P031380-016-002

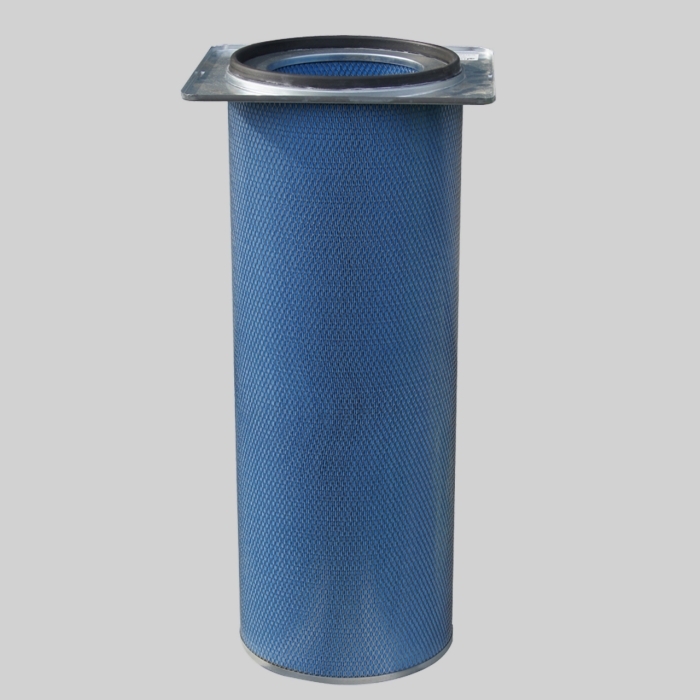

Ultra-Web Cartridge Filter, 324 mm outer diameter x 559 mm long (12.74-inch outer diameter x 22.00-inches long), Open/Closed Endcaps with 361 mm x 406 mm Rectangle Flange (14.22-inch x 15.98-inch Rectangle Flange) for Camfil Farr Tenkay and other brands of cartridge collectors.

Diameter (mm)	324
Inner Diameter (mm)	212
Length (mm)	559
Media	#REF!
Media Weight (g/m²)	114
Area (m²)	17.65
Unit Family	Farr-Tenkay
Bottom End Cap Design	Closed
Earthed	No
Flame Retardant	No
Top End Cap Design	Open (Square)
Outer Liner	Yes
Gasket Position	Above Top End Cap
End Cap/Liner Material	Galvanized Steel
Pleath Height (mm)	38.1
Number of Pleats	323
Max. Temp (°C)	82
Volume (m³)	0.11799043374496
Weight (kg)	6.9853168
