P191865-016-340

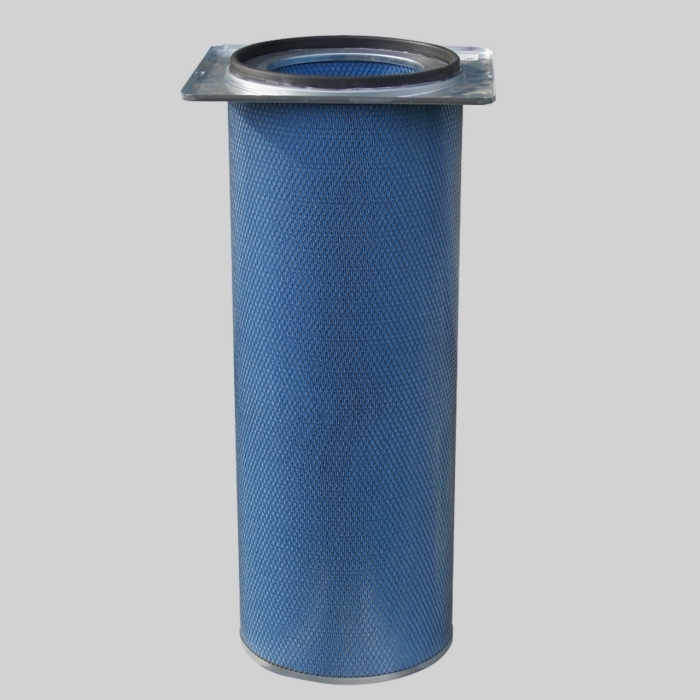

Ultra-Web Cartridge Filter, 323.6mm outer diameter X 660mm long (12.74-inch outer diameter X 26.00-inch long), Open/Closed Endcaps with 361.19mm x 405.89mm (14.22-inch x 15.98-inch) Rectangle Flange for Farr Tenkay and other brands of cartridge collectors.

Diameter (mm)	324
Inner Diameter (mm)	211
Length (mm)	660
Media	#REF!
Media Weight (g/m²)	114
Area (m²)	21
Unit Family	Farr-Tenkay
Bottom End Cap Design	Closed
Earthed	No
Flame Retardant	No
Top End Cap Design	Open (Square)
Outer Liner	No
Gasket Position	Above Top End Cap
End Cap/Liner Material	Galvanized Steel
Pleath Height (mm)	51
Number of Pleats	323
Max. Temp (°C)	82
Volume (m³)	0.10252
Weight (kg)	7.84260568
