P033146-016-436

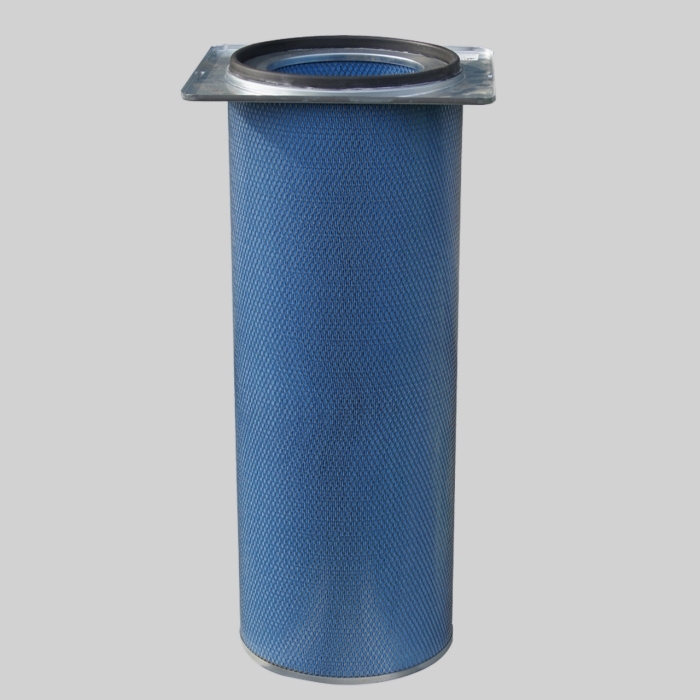

Ultra-Web Flame Retardant Cartridge Filter, 324 mm outer diameter x 864 mm long (12.74-inch outer diameter x 34.00-inches long), Open/Closed Endcaps with 361 mm x 406 mm Rectangle Flange (14.22-inch x 15.98-inch Rectangle Flange) for Camfil Farr Tenkay and other brands of cartridge collectors.

Diameter (mm)	324
Inner Diameter (mm)	213
Length (mm)	864
Media	#REF!
Media Weight (g/m²)	115
Area (m²)	26.76
Unit Family	Farr-Tenkay
Bottom End Cap Design	Closed
Earthed	No
Flame Retardant	Yes
Top End Cap Design	Open (Square)
Outer Liner	Yes
Gasket Position	Above Top End Cap
End Cap/Liner Material	Galvanized Steel
Pleath Height (mm)	50.8
Number of Pleats	313
Max. Temp (°C)	82
Volume (m³)	0.17470616096
Weight (kg)	9.73181636
