2625951U-000-440

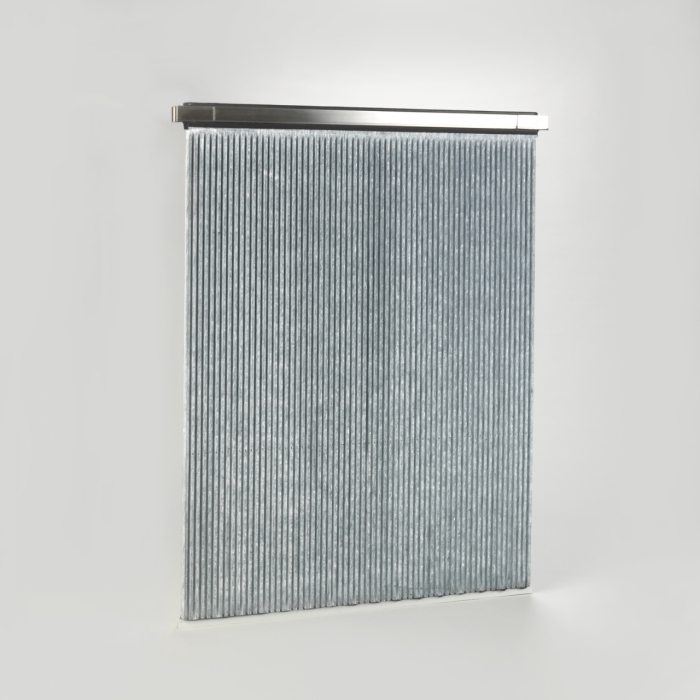

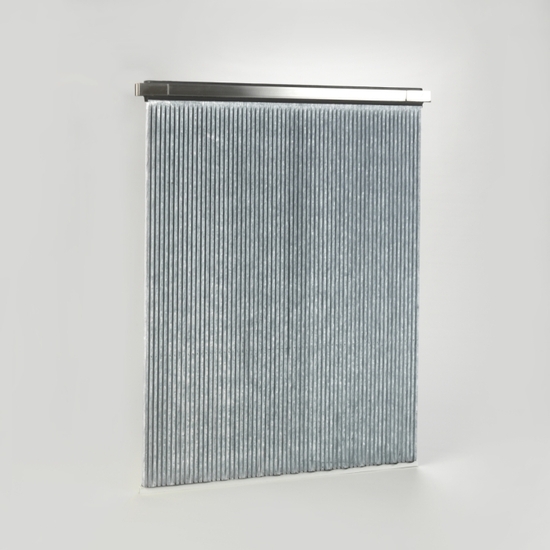

PANEL HSL 1500/8 SINTERED ANTI-STATIC W 440 MM X L 1555 MM X D 42 MM SS WITHOUT SILICONE

Your price: €819.09
List price:  €900.10

Files

Filter Data Sheet

Details

HSL-style Panel Filter in Sintered Anti-Static, 440 mm wide x 1555 mm long x 42 mm deep; Special feature: Earthed with Stainless Steel and without Silicone, clamped gasket and bottom rail length 455 mm for Herding HSL 1500/8 and other brands of collectors

Attributes

Length (mm) 1555
Width (mm) 440
Media #REF!
Area (m²) 3.3
Unit Family HSL 1500/8
Bottom End Cap Design Closed
Earthed Yes
Flame Retardant No
Top End Cap Design Open
Gasket Position Above Header
End Cap/Liner Material Stainless Steel
Max. Temp (°C) 60
Volume (m³) 0.0704
Weight (kg) 10
