1A43394012U-000-440

PANEL SI 1500/6 SINTERED ANTI-STATIC W 330 MM X L 1555 MM X D 42 MM SS WITHOUT SILICONE

Your price: €1,032.15
List price:  €1,134.24

Files

Filter Data Sheet

Details

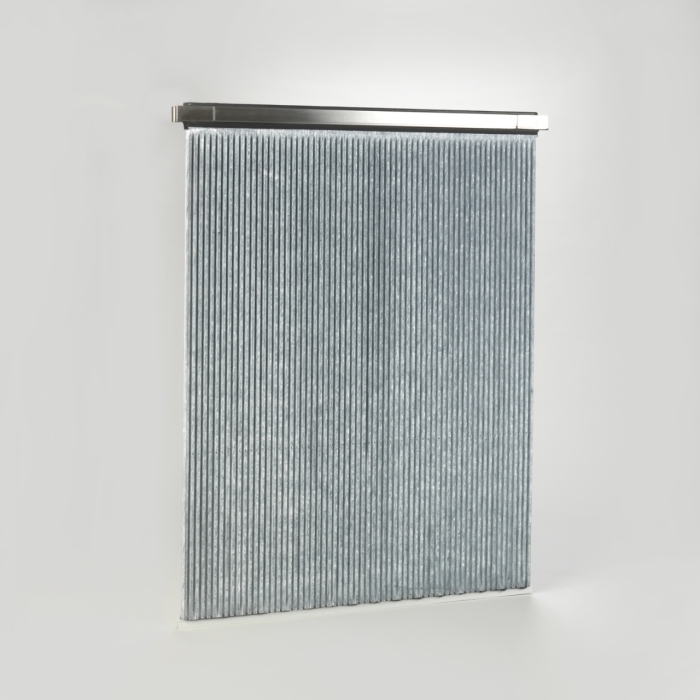

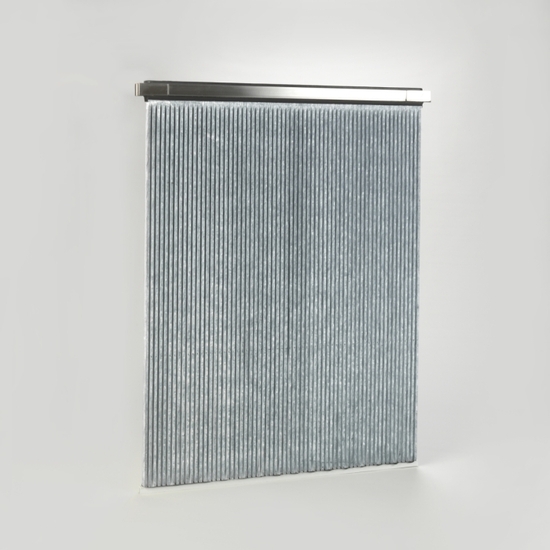

SI-style Panel Filter in Sintered Anti-Static, 330 mm wide x 1555 mm long x 42 mm deep; Special feature: Earthed with Stainless Steel and without Silicone, clamped gasket and bottom rail length 345 mm for SI 1500/6 and other brands of collectors

Attributes

Length (mm) 1555
Width (mm) 330
Media #REF!
Area (m²) 2.4
Unit Family SI
Bottom End Cap Design Closed
Earthed Yes
Flame Retardant No
Top End Cap Design Open
Gasket Position Above Header
End Cap/Liner Material Stainless Steel
Max. Temp (°C) 60
Volume (m³) 0.09535
Weight (kg) 10
