2627264-000-440

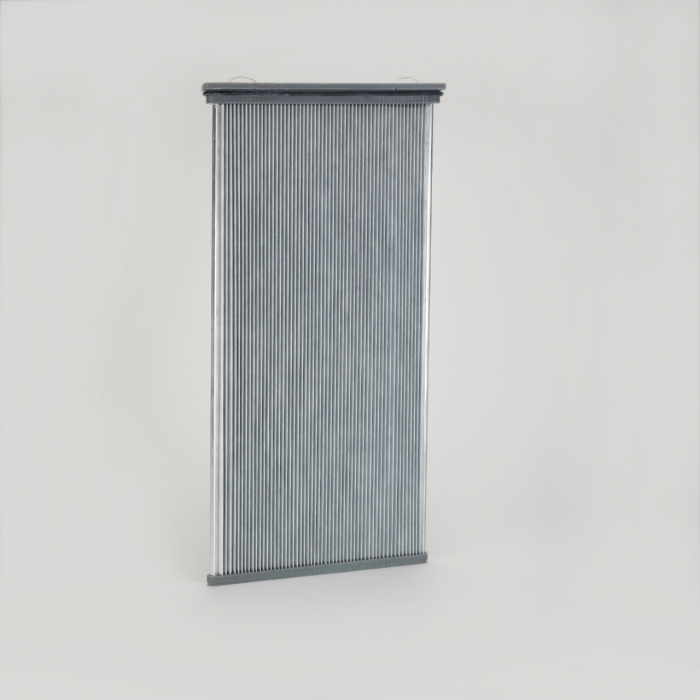

Dalamatic Pleated Bag in Polyester Spunbond Anti-Static, 455 mm wide x 1000 mm long x 25 mm deep; Special feature: Earthed to convert bags and cages for Dalamatic Insertable (DLMV), Dalamatic Cased (DLMC) and other brands of baghouse collectors

Length (mm)	1000
Width (mm)	455
Media	#REF!
Media Weight (g/m²)	260
Area (m²)	2.86
Unit Family	DLMV / DLMC
Bottom End Cap Design	Closed
Earthed	Yes
Flame Retardant	No
Top End Cap Design	Open
Gasket Position	Gasket Below Header
End Cap/Liner Material	Polyurethane
Pleath Height (mm)	13
Number of Pleats	110
Max. Temp (°C)	60
Volume (m³)	0.03749
Weight (kg)	2.7
