P034395-016-436

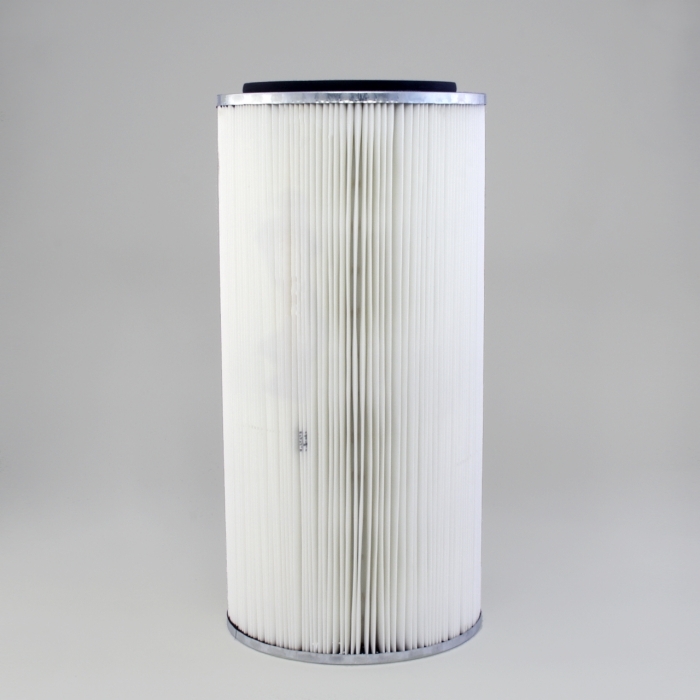

ULTRA-WEB SB CARTRIDGE 324 MM OD X 1000 MM L (12.74" OD X 39.37" L)

Your price: €236.99
List price:  €260.43

Details

Ultra-Web Spunbond Cartridge Filter, 323.6mm outer diameter X 1000.0mm long (12.74-inch outer diameter X 39.37-inch long), Open/Closed Endcaps with 361.19mm x 405.89mm (14.22-inch x 15.98-inch) Rectangle Flange for Farr Tenkay and other brands of cartridge collectors.

Attributes

Diameter (mm) 324
Inner Diameter (mm) 213
Length (mm) 1000
Media #REF!
Media Weight (g/m²) 260
Area (m²) 6.03
Unit Family Farr-Tenkay
Bottom End Cap Design Closed
Earthed No
Flame Retardant No
Top End Cap Design Open (Square)
Outer Liner No
Gasket Position Above Top End Cap
End Cap/Liner Material Galvanized Steel
Pleath Height (mm) 51
Number of Pleats 61
Max. Temp (°C) 93
Volume (m³) 0.16758
Weight (kg) 9.68872512
