CARTRIDGE CLOSED WITH HOLE 13.5 MM ULTRA-WEB SB ANTI-STATIC OD 324 MM X L 750 MM
CARTRIDGE CLOSED WITH HOLE 13.5 MM ULTRA-WEB SB ANTI-STATIC OD 324 MM X L 750 MM

2626346

CARTRIDGE CLOSED WITH HOLE 13.5 MM ULTRA-WEB SB ANTI-STATIC OD 324 MM X L 750 MM

Your price: €242.51
List price:  €266.50

Files

Filter Data Sheet Media Data Sheet

Details

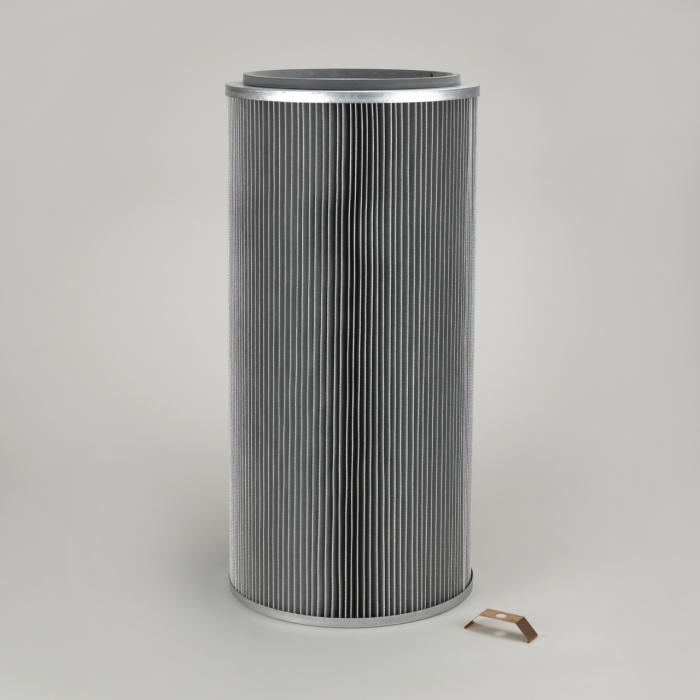

Cartridge Filter with open top end cap and closed bottom end cap with hole of 13.5 mm in Ultra-Web Spunbond Anti-Static, 324 mm outer diameter x 750 mm long; Special features: Earthed for Plymovent and other brands of cartridge collectors

Attributes

Diameter (mm) 324
Inner Diameter (mm) 213
Length (mm) 750
Media #REF!
Media Weight (g/m²) 260
Area (m²) 12.1
Unit Family MultiDust Bank
Bottom End Cap Design Closed with hole 13.5 mm
Earthed Yes
Flame Retardant No
Top End Cap Design Open
Outer Liner No
Gasket Position Above Top End Cap
End Cap/Liner Material Galvanized Steel
Pleath Height (mm) 51
Number of Pleats 172
Max. Temp (°C) 93
Volume (m³) 0.132192
Weight (kg) 8.2
