2626913-000-440

CARTRIDGE DFE ULTRA-WEB FR OD (349 X 349) MM X L 660 MM TRIAGONAL

Your price: €269.37
List price:  €296.02

Files

Filter Data Sheet Media Data Sheet

Details

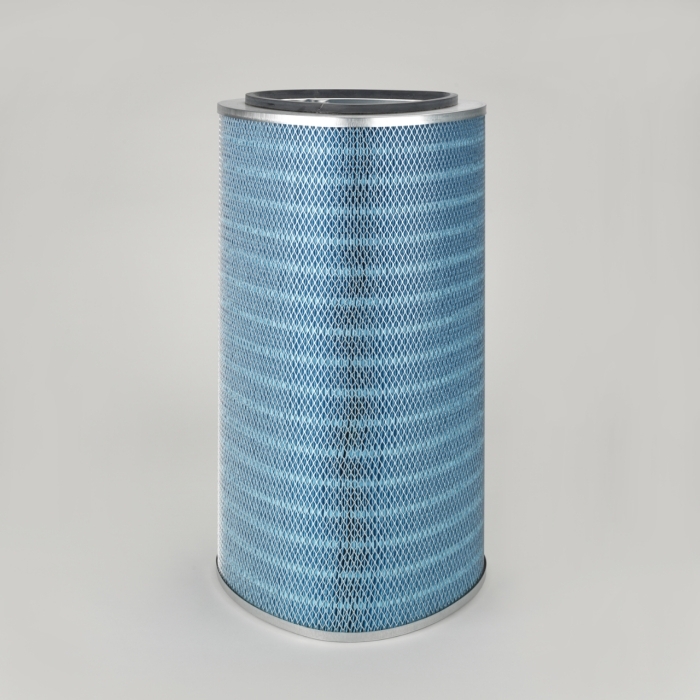

Triagonal Cartridge Filter in Ultra-Web Flame Retardant, 349 mm x 349 mm outer diameter x 660 mm long for Downflo Evolution (DFE) cartridge collectors

Attributes

Diameter (mm) 349
Diameter II (mm) 349
Inner Diameter (mm) 237.4
Inner Diameter II (mm) 237.4
Length (mm) 660
Media #REF!
Media Weight (g/m²) 115
Area (m²) 23.4
Unit Family DFE
Bottom End Cap Design Open
Earthed No
Flame Retardant Yes
Top End Cap Design Open
Outer Liner Yes
Gasket Position Above Top End Cap
End Cap/Liner Material Galvanized Steel
Pleath Height (mm) 51
Number of Pleats 364
Max. Temp (°C) 65
Volume (m³) 0.099937
Weight (kg) 5.99
