2626831-000-440

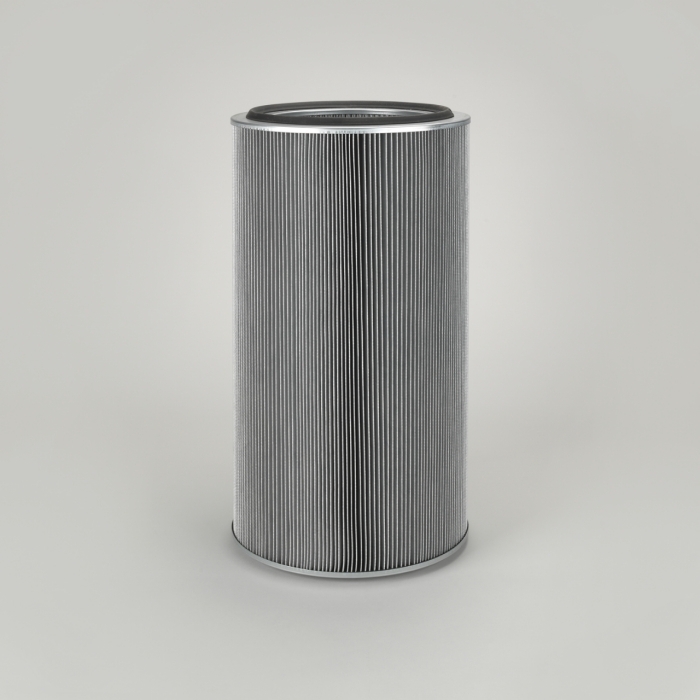

Cartridge Filter with open top end cap and open bottom end cap in Ultra-Web Spunbond Anti-Static, 325 mm outer diameter x 628 mm long including top gasket; Special features: Without earthing cable/spiral glue on the inside of the cartridge and with one strap around the cartridge for Camfil and other brands of cartridge collectors

Diameter (mm)	325
Inner Diameter (mm)	216
Length (mm)	628
Media	#REF!
Media Weight (g/m²)	260
Area (m²)	10
Unit Family	Camfil Farr
Bottom End Cap Design	Open
Earthed	Yes
Flame Retardant	No
Top End Cap Design	Open
Outer Liner	No
Gasket Position	Gaskets on Top and Bottom End Caps
End Cap/Liner Material	Galvanized Steel
Pleath Height (mm)	45
Number of Pleats	175
Max. Temp (°C)	60
Volume (m³)	0.08575
Weight (kg)	5.83
