2627344-000-440

CARTRIDGE OVAL (DFO-STYLE) BLENDED 80/20 OD (289 X 365) MM X L 660 MM OUTER LINER

Your price: €122.64
List price:  €134.78

Files

Media Data Sheet Filter Data Sheet

Details

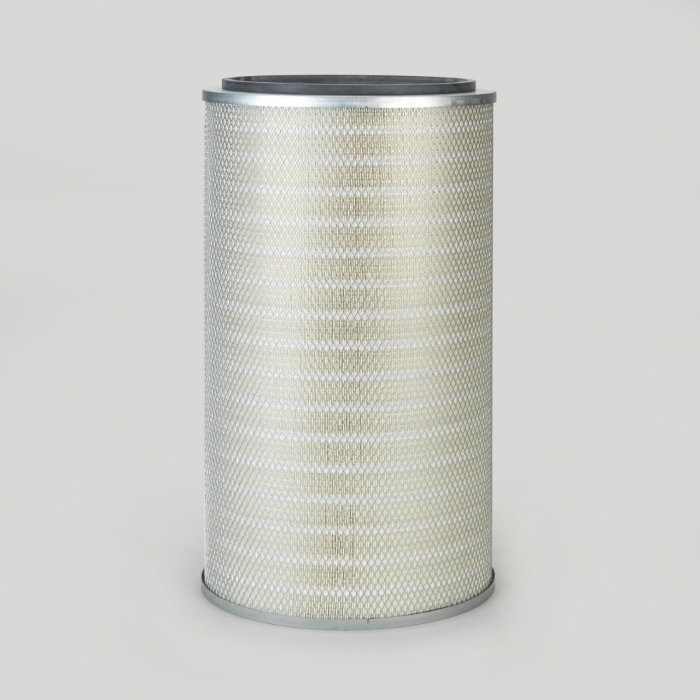

Oval Cartridge Filter in Blended 80/20, 289 x 365 mm outer diameter x 660 mm long; Special feature: With outer liner for Downflo Oval (DFO) and other brands of cartridge collectors

Attributes

Diameter (mm) 289
Diameter II (mm) 365
Inner Diameter (mm) 203
Inner Diameter II (mm) 279
Length (mm) 660
Media #REF!
Media Weight (g/m²) 130
Area (m²) 17.7
Unit Family DFO/DFPRO
Bottom End Cap Design Open
Earthed No
Flame Retardant No
Top End Cap Design Open
Outer Liner Yes
Gasket Position Above Top End Cap
End Cap/Liner Material Galvanized Steel
Pleath Height (mm) 38
Number of Pleats 365
Max. Temp (°C) 65
Volume (m³) 0.08717
Weight (kg) 5.98
