2625576

CARTRIDGE QUICK FIX 3 HOOK POLYESTER OD 325 MM X L 1218 MM DAP & CAP

Your price: €211.86
List price:  €232.82

Files

Filter Data Sheet

Details

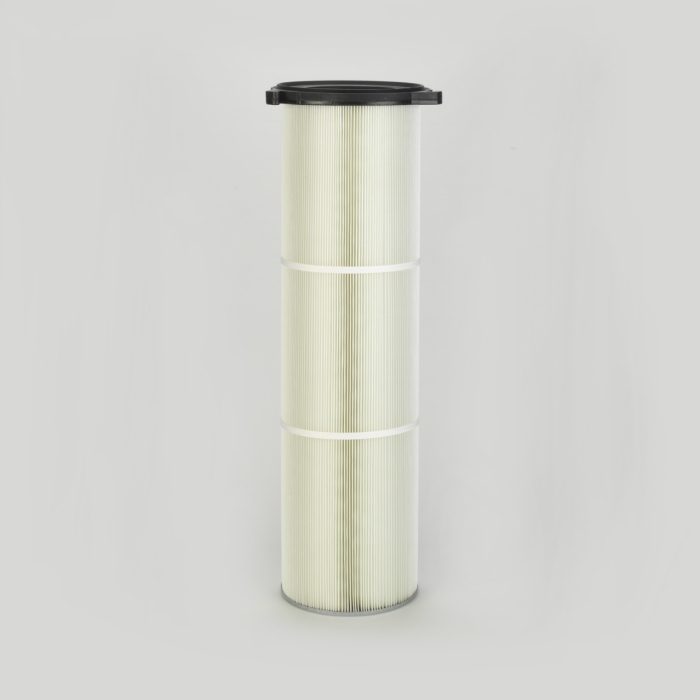

Cartridge Filter with open top end cap with 3 hooks, 397 mm pitch diameter and closed bottom end cap in Polyester Spunbond, 325 mm outer diameter x 1218 mm long including top gasket; Special feature: Dirty Air Plenum and Clean Air Plenum installation for Series 325 and other brands of cartridge collectors

Attributes

Diameter (mm) 325
Inner Diameter (mm) 213
Length (mm) 1218
Media #REF!
Media Weight (g/m²) 270
Area (m²) 15
Unit Family Quick Fix 3
Pitch Diameter (mm) 397 (actual 393)
Bottom End Cap Design Closed
Earthed No
Flame Retardant No
Top End Cap Design Open with 3 Hooks
Outer Liner No
Gasket Position Above and Below Top End Cap
End Cap/Liner Material Top End Cap Polyurethane and Bottom End Cap Zinc Plated Steel
Pleath Height (mm) 46
Number of Pleats 135
Max. Temp (°C) 60
Volume (m³) 0.224028
Weight (kg) 11.52
