2627194-000-440

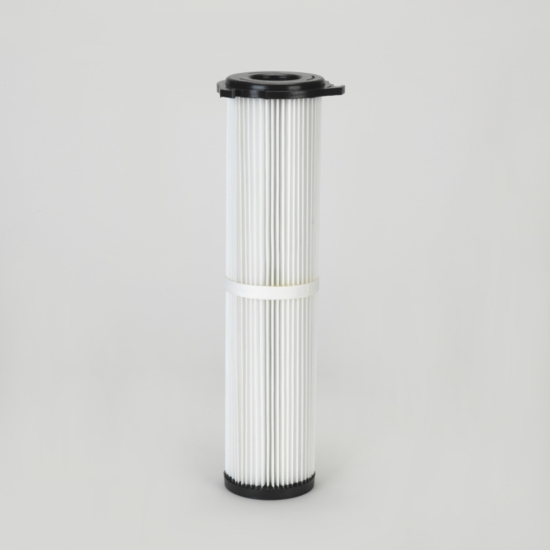

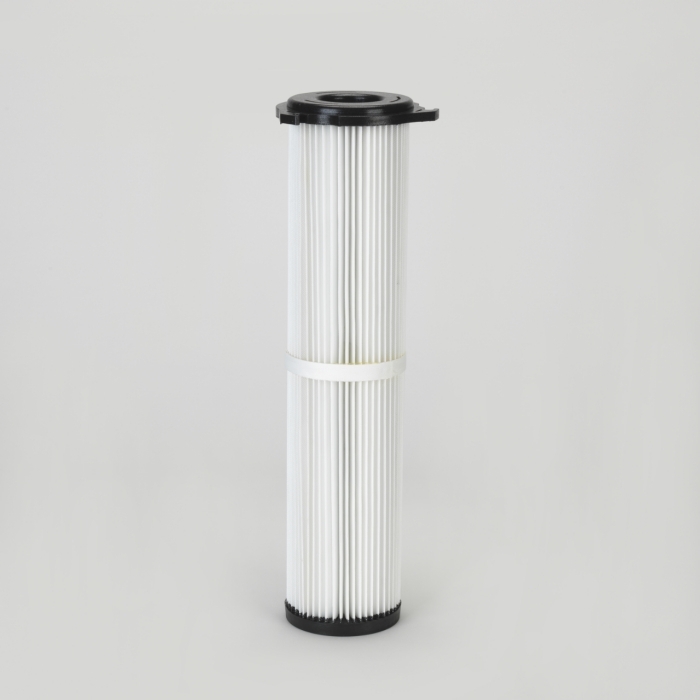

Cartridge Filter with open top end cap with 3 hooks, 145 mm pitch diameter and closed bottom end cap in Ultra-Web Spunbond, 115 mm outer diameter x 506 mm long; Special feature: Interchangeable gasket for Dirty Air Plenum or Clean Air Plenum installation for different brands of cartridge collectors

Diameter (mm)	115
Inner Diameter (mm)	60
Length (mm)	506
Media	#REF!
Media Weight (g/m²)	260
Area (m²)	1.19
Unit Family	Quick Fix 3
Pitch Diameter (mm)	145
Bottom End Cap Design	Closed
Earthed	No
Flame Retardant	No
Top End Cap Design	Open with 3 Hooks
Outer Liner	No
Gasket Position	Above or Below Top End Cap
End Cap/Liner Material	Polyurethane
Pleath Height (mm)	22
Number of Pleats	54
Max. Temp (°C)	60
Volume (m³)	0.04496
Weight (kg)	1.46
