2625750

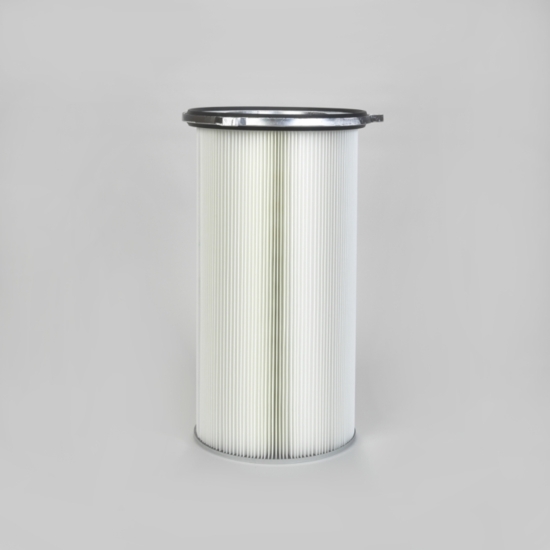

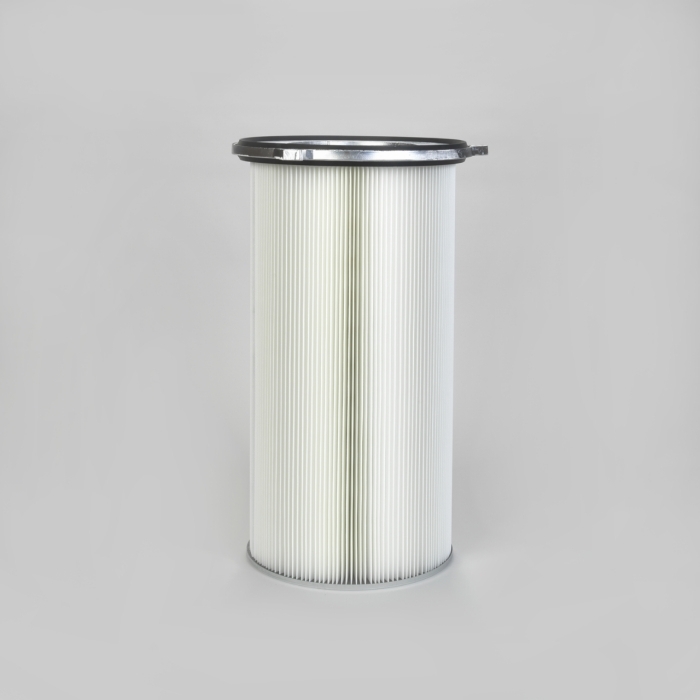

CARTRIDGE QUICK FIX 3 HOOK ULTRA-WEB SB OD 145 MM X L 600 MM EARTHED DAP & CAP

Your price: €133.98
List price:  €147.24

Files

Media Data Sheet Filter Data Sheet

Details

Cartridge Filter with open top end cap with 3 hooks, 180 mm pitch diameter and closed bottom end cap in Ultra-Web Spunbond, 145 mm outer diameter x 600 mm long; Special feature: Earthed and Special features: Dirty Air Plenum and Clean Air Plenum installation for Series 145 / JETPACK C and other brands of cartridge collectors

Attributes

Diameter (mm) 145
Inner Diameter (mm) 80
Length (mm) 600
Media #REF!
Media Weight (g/m²) 260
Area (m²) 1.95
Unit Family JETPACK C
Pitch Diameter (mm) 180
Bottom End Cap Design Closed
Earthed Yes
Flame Retardant No
Top End Cap Design Open with 3 Hooks
Outer Liner No
Gasket Position Above and Below Top End Cap
End Cap/Liner Material Galvanized Steel
Pleath Height (mm) 25
Number of Pleats 65
Max. Temp (°C) 93
Volume (m³) 0.02814
Weight (kg) 1.65
