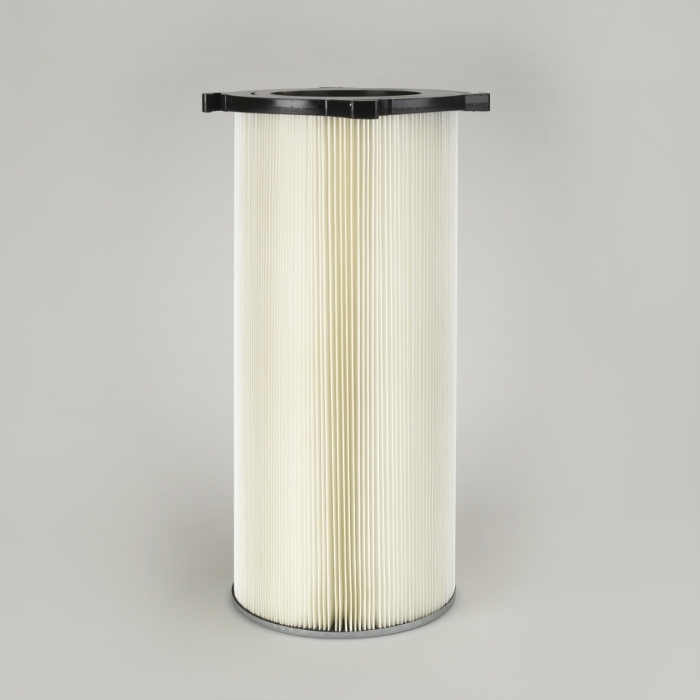

2626934-000-440

Cartridge Filter with open top end cap with 4 hooks, 366 mm pitch diameter and closed bottom end cap in Polyester Spunbond with PTFE, 325 mm outer diameter x 758 mm long; Special features: Clean Air Plenum installation for different brands of cartridge collectors

Diameter (mm)	325
Inner Diameter (mm)	213
Length (mm)	758
Media	#REF!
Media Weight (g/m²)	290
Area (m²)	12
Unit Family	Quick Fix 4
Pitch Diameter (mm)	366
Bottom End Cap Design	Closed
Earthed	No
Flame Retardant	No
Top End Cap Design	Open with 4 Hooks
Outer Liner	No
Gasket Position	Below Top End Cap
End Cap/Liner Material	Top End Cap Polyurethane and Bottom End Cap Galvanized Steel
Pleath Height (mm)	45
Number of Pleats	175
Max. Temp (°C)	60
Volume (m³)	0.141204
Weight (kg)	7.5
